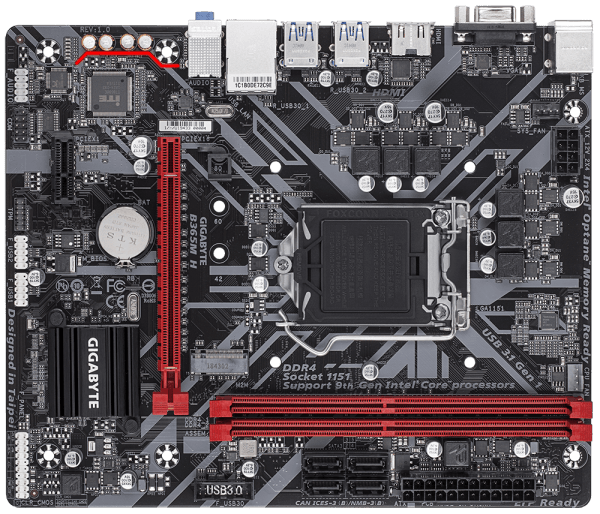

B365M H (rev. 1.0)

CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU Chipset Intel® B365 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port 1 x HDMI port Maximum shared memory of 1 GB Actual support may vary by CPU Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Storage Interface Chipset: 1 x M.2 connector 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory USB 6 x USB 3.1 Gen 1 ports 6 x USB 2.0/1.1 ports 1 x Trusted Platform Module (TPM) header 1 x serial port header Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm More Info: https://www.gigabyte.com/Motherboard/B365M-H-rev-10#kf
