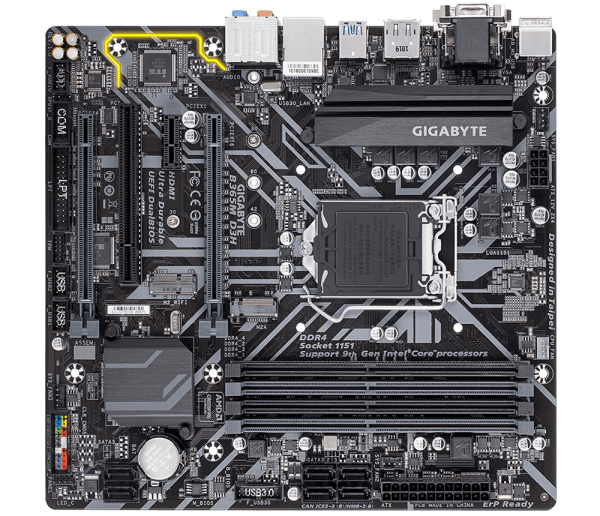

B365M D3H (rev. 1.0)

CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU Chipset Intel® B365 Express Chipset Memory 4x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port Support for up to 3 displays at the same time Maximum shared memory of 1 GB Actual support may vary by CPU Audio Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x16 slot, running at x4 1 x PCI Express x1 1 x PCI slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Storage Interface Chipset: 1 x M.2 connector 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready USB 1x USB Type-C™ port 5 x USB 3.1 Gen 1 ports 6 x USB 2.0/1.1 ports 1 x RGB LED strip header 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 23.0cm More Info: https://www.gigabyte.com/Motherboard/B365M-D3H-rev-10#kf
