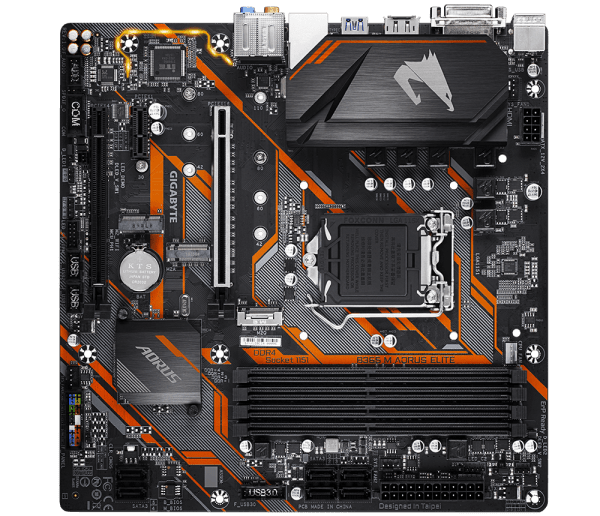

B365 M AORUS ELITE (rev. 1.0)
$ 96.47
Опис CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU Chipset Intel® B365 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. Integrated Graphics Processor-Intel® HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Storage Interface Chipset: 2 x M.2 connector 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready USB 1 x USB Type-C™ port 5 x USB 3.1 Gen 1 ports 6 x USB 2.0/1.1 ports 2 x RGB LED strip headers 1 x Trusted Platform Module (TPM) header 1 x serial port header Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm More Info: https://www.gigabyte.com/Motherboard/B365-M-AORUS-ELITE-rev-10#k
