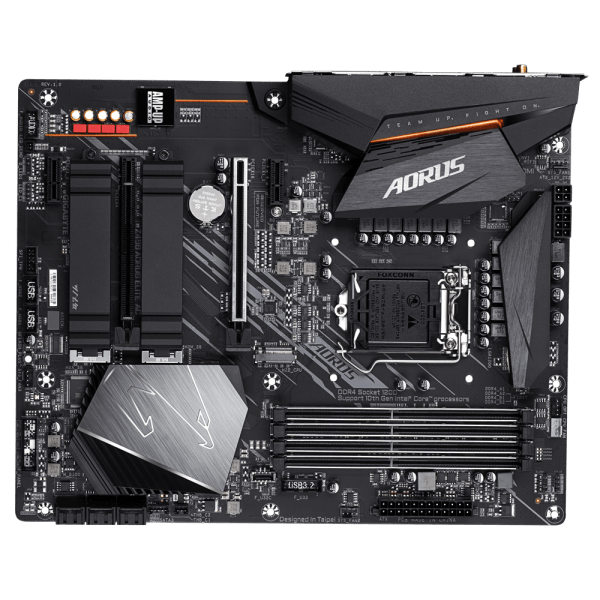

Z490 AORUS ELITE AC (rev. 1.0)

CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU Chipset Intel® Z490 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Intel® Core™ i9/i7 processors: Support for DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Intel® HD Graphics support: 1 x HDMI port Maximum shared memory of 512 MB Audio Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication Intel® Wi-Fi AC 9462: Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 1×1 11ac wireless standard and up to 433 Mbps data rate Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Storage Interface Chipset: 2 x M.2 connectors 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready USB Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C™ port with USB 3.2 Gen 1 support 6 x USB 3.2 Gen 1 ports Chipset 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports 1 x water cooling CPU fan header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Trusted Platform Module header 2 x Thunderbolt™ add-in card connectors Operating System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm More Info: https://www.gigabyte.com/Motherboard/Z490-AORUS-ELITE-AC-rev-10#kf
